Polytunnel Hoops

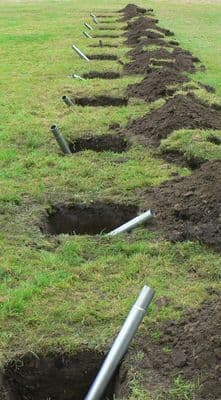

Our Foundation Tubes are designed specifically for use with our range of Polytunnels, featuring a swaged end for secure assembly. These tubes are suitable for quick and straightforward installation, particularly when constructing Polytunnels onto a soil base.

Installation Options

Foundation Tubes may be anchored directly into concrete for enhanced stability, or alternatively, they can be used in conjunction with Anchor Plates. Both methods provide reliable support for the structure, depending on site requirements and user preference.

Available Sizes

We offer Foundation Tubes in four different sizes to accommodate various specifications. Please refer to the table below for detailed information regarding each tube size.

The OD of the swaged end is as follows:

• 25.4mm with a .22mm swaged end.
• 35.0mm with a 31mm swaged end.
• 50.8mm with a 46.8mm swaged end.
• 60.3mm with a 56.3mm swaged end.

We provide various options for ground foundations or anchor plates, as well as base plates for concrete or timber, for both garden and commercial polytunnels. These options come in sizes of 25mm, 35mm, 50.8mm, and 60.3mm. For smaller tunnels, we also offer screw anchors in sizes of 25mm and 35mm. These options are compatible with most polytunnels, regardless of the manufacturer.

PLEASE NOTE: IF YOU ARE ORDERING THE ANCHOR PLATES, YOU MAY REQUIRE THE FOUNDATION TUBES TOO.

Anchor Plates provide a strong, reliable alternative to concreting and add extra security to your polytunnel structure. They are essential when fitting Base Rails or Side Rails, helping to prevent the framework from lifting or sinking over time.

Each square plate slides over the Foundation Tube (not included) and is secured at the base using two clamps—one above and one below the plate. Once buried, the plate locks the tube firmly in place, improving overall stability in a wide range of soil conditions.

Available in three sizes. Please refer to the table below for pack contents.

Base Plates provide a quick, reliable method of installing a Polytunnel onto a timber or concrete base. They create sturdy ‘feet’ for the framework and are used instead of Foundation Tubes when ground‑dig installation isn’t suitable.

Each plate is manufactured to securely support the hoop and ensure a stable, long‑lasting structure.

Fixing Options

• Timber Base: Supplied with M8 × 50 mm screw bolts for fast, secure fixing.

• Concrete Base: Supplied with M10 × 75 mm Rawl bolts for heavy‑duty anchoring.

Hoop Compatibility

• 25.4 mm diameter hoops locate inside the Base Plate tube.

• 35 mm diameter hoops locate outside the Base Plate tube.

This ensures a snug, secure fit regardless of hoop size.

Please Note, Hoops with a diameter of 25.4mm will locate inside the Base Plate Tube. Hoops with a diameter of 35mm will locate outside of the Base Plate Tube.

Base Plates provide a quick, reliable method of installing a Polytunnel onto a timber or concrete base. They create sturdy ‘feet’ for the framework and are used instead of Foundation Tubes when ground‑dig installation isn’t suitable.

Each plate is manufactured to securely support the hoop and ensure a stable, long‑lasting structure.

Fixing Options

• Timber Base: Supplied with M10 × 50 mm screw bolts for fast, secure fixing.

• Concrete Base: Supplied with M10 × 75 mm Rawl bolts for heavy‑duty anchoring.

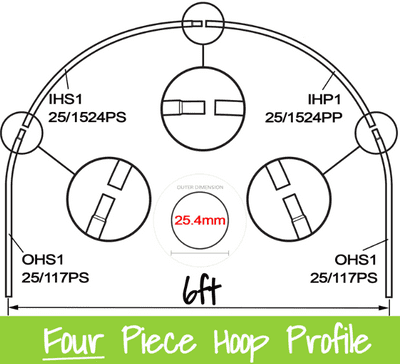

Our 6ft wide hoop is produced from 25mm galvanised steel tube as used in our 8ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 6ft (1.83m)
B. Height - 6ft 10in (2.08m)
C. Straight Side - 4ft (1.21m)
D. Distance Over Hoop - 17ft 3in (5.25m)

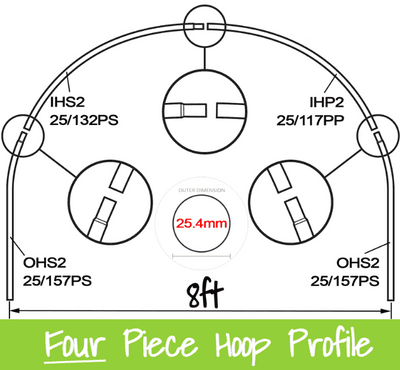

Our 8ft wide hoop is produced from 25mm galvanised steel tube as used in our 8ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 8ft (2.44m)
B. Height - 6ft 8in (2.03m)
C. Straight Side - 3ft 3in (0.99m)
D. Distance Over Hoop - 18ft (5.48m)

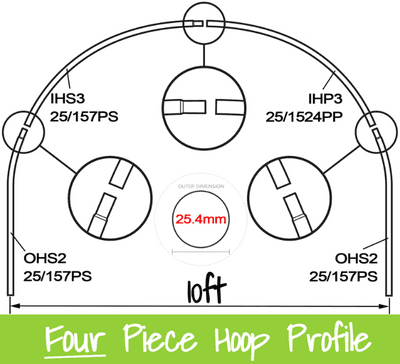

Our 10ft wide hoop is produced from 25mm galvanised steel tube as used in our 8ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

10ft Wide Polytunnel Hoop
A. Hoop Width – 10ft (3.05m)
B. Height – 7ft (2.13m)
C. Straight Side – 3ft 2in (0.96m)
D. Distance Over Hoop – 20ft (6.09m)

Our 12ft wide hoop is produced from 35mm galvanised steel tube as used in our 12ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

12ft Wide Polytunnel Hoop
A. Hoop Width - 12ft (3.66m)
B. Height - 7ft 7in (2.31m)
C. Straight Side - 3ft 3in (0.99m)
D. Distance Over Hoop - 22ft 8in (6.90m)

Our 14ft wide hoop is produced from 35mm galvanised steel tube as used in our 14ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 14ft (4.27m)
B. Height - 8ft 2in (2.48m)
C. Straight Side - 3ft 3in (0.99m)
D. Distance Over Hoop - 25ft 4in (7.72m)

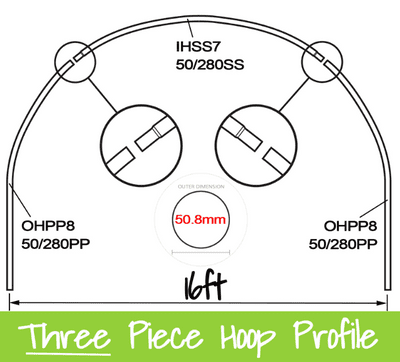

Our 16ft wide hoop is produced from 50mm galvanised steel tube as used in our 16ft wide polytunnel model. We offer a full hoop in three piece sections. We also offer individual sections. Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through  using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 16ft (4.88m)
B. Height - 8ft 4in (2.54m)
C. Straight Side - 3ft 3in (0.99m)
D. Distance Over Hoop - 26ft 7in (8.15m)

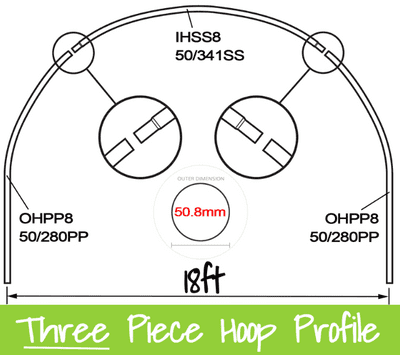

Our 18ft wide hoop is produced from 50mm galvanised steel tube as used in our 18ft wide polytunnel model. We offer a full hoop in three piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 18ft (5.49m)
B. Height - 8ft 6in (2.59m)
C. Straight Side - 3ft 3in (0.99m)
D. Distance Over Hoop - 28ft 7in (8.76m)

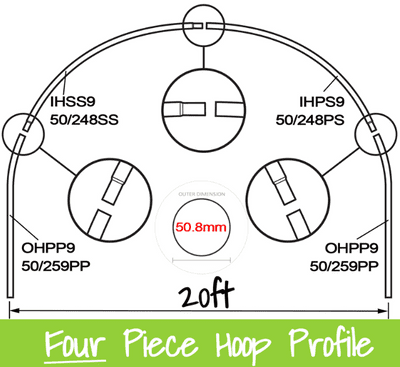

Our 20ft wide hoop is produced from 50mm galvanised steel tube as used in our 20ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 20ft (6.10m)
B. Height - 9ft 4in (2.84m)
C. Straight Side - 4ft 6in (1.37m)
D. Distance Over Hoop - 32ft 5in (9.89m)

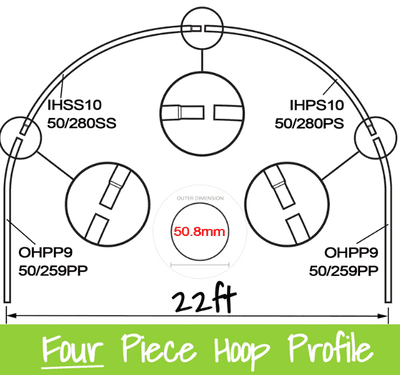

Our 22ft wide hoop is produced from 50mm galvanised steel tube as used in our 22ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 22ft (6.7m)
B. Height - 9ft 7in (2.92m)
C. Straight Side - 4ft 6in (1.37m)
D. Distance Over Hoop - 3ft 5in (10.53m)

Our 24ft wide hoop is produced from 50mm galvanised steel tube as used in our 24ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 24ft (7.32m)
B. Height - 9ft 10in (2.9m)
C. Straight Side - 4ft 6in (1.37m)
D. Distance Over Hoop - 36ft 5in (11.13m)

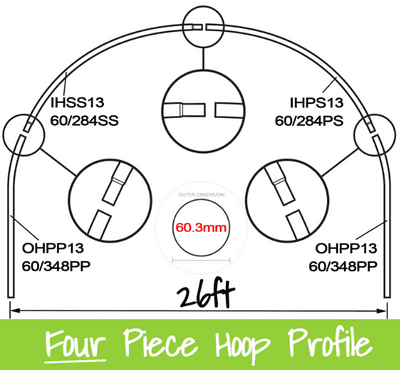

Our 26ft wide hoop is produced from 60.3mm galvanised steel tube as used in our 26ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 26ft (7.92m)
B. Height - 12ft (3.66m)
C. Straight Side - 3ft 3in (1.00m)
D. Distance Over Hoop - 41ft (12.5m)

Our 28ft wide hoop is produced from 60.3mm galvanised steel tube as used in our 28ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 28ft (8.54m)
B. Height - 12ft 2in (3.71m)
C. Straight Side - 3ft 3in (1.00m)
D. Distance Over Hoop - 43ft (13.1m)

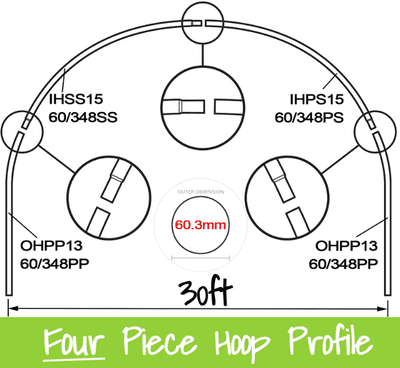

Our 30ft wide hoop is produced from 60.3mm galvanised steel tube as used in our 30ft wide polytunnel model. We offer a full hoop in four piece sections. We also offer individual sections.

Hoops simply slot together, allowing easy storage when not in use. A permanent fix can be achieved through using Self Drill Screws. The hoops can be pushed into soft soil, or you can look at ordering additional Foundations for a more permanent and secure fitting.

A. Hoop Width - 30ft (9.14m)
B. Height - 12ft 3in (3.73m)
C. Straight Side - 3ft 3in (1.00m)
D. Distance Over Hoop - 45ft (13.7m)
