Product Description

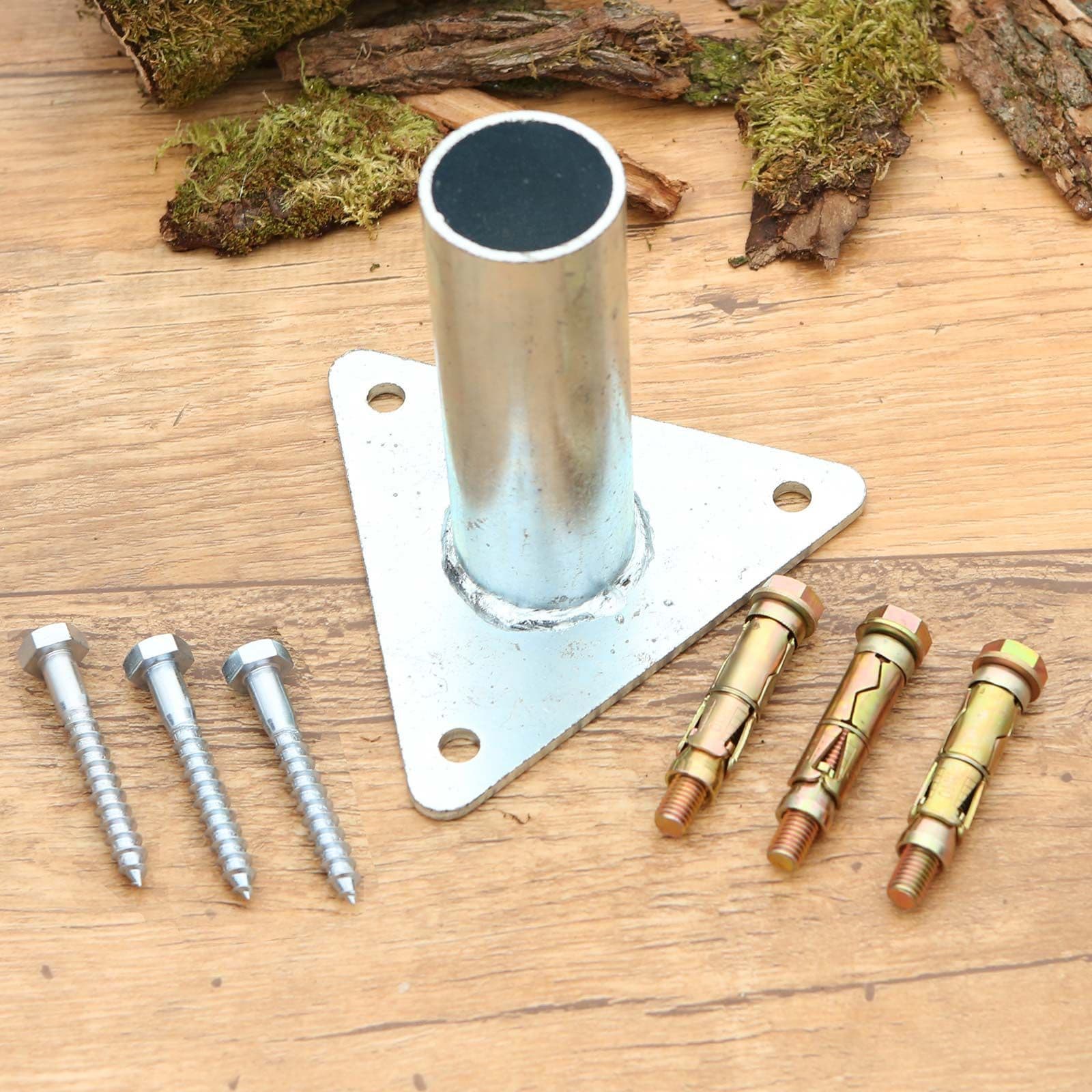

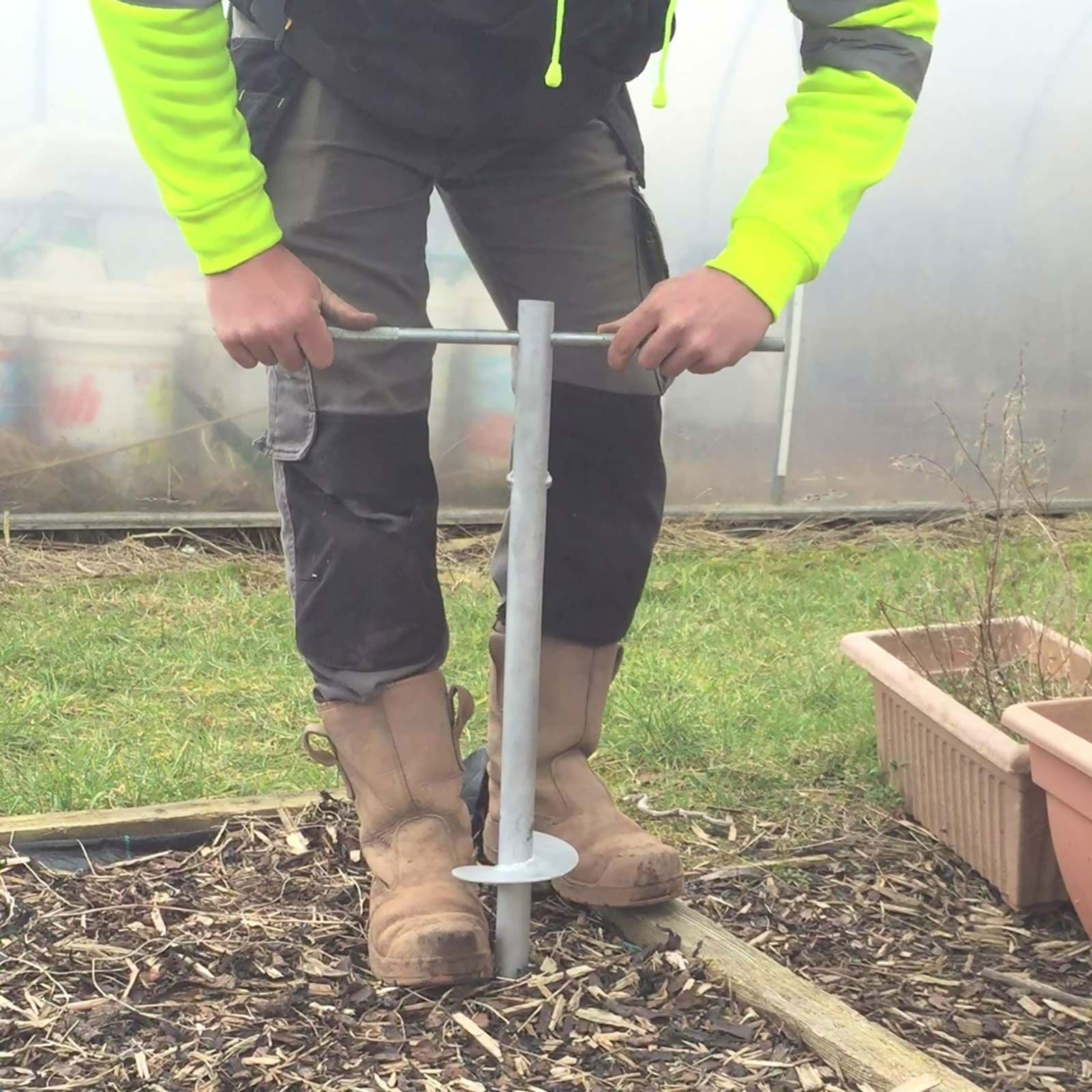

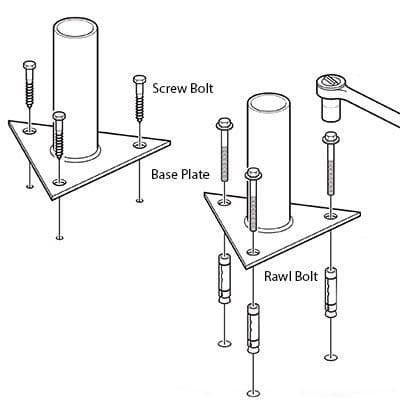

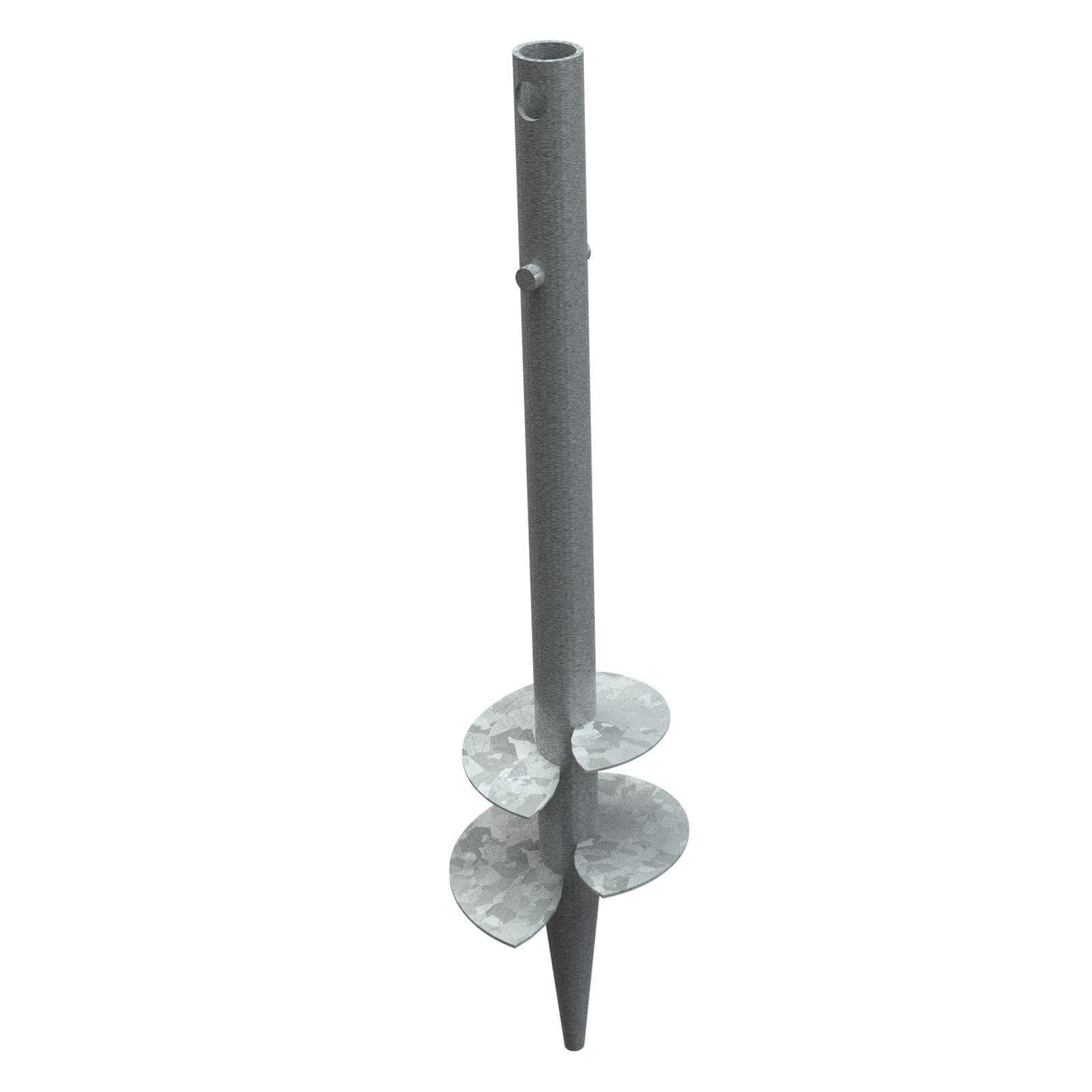

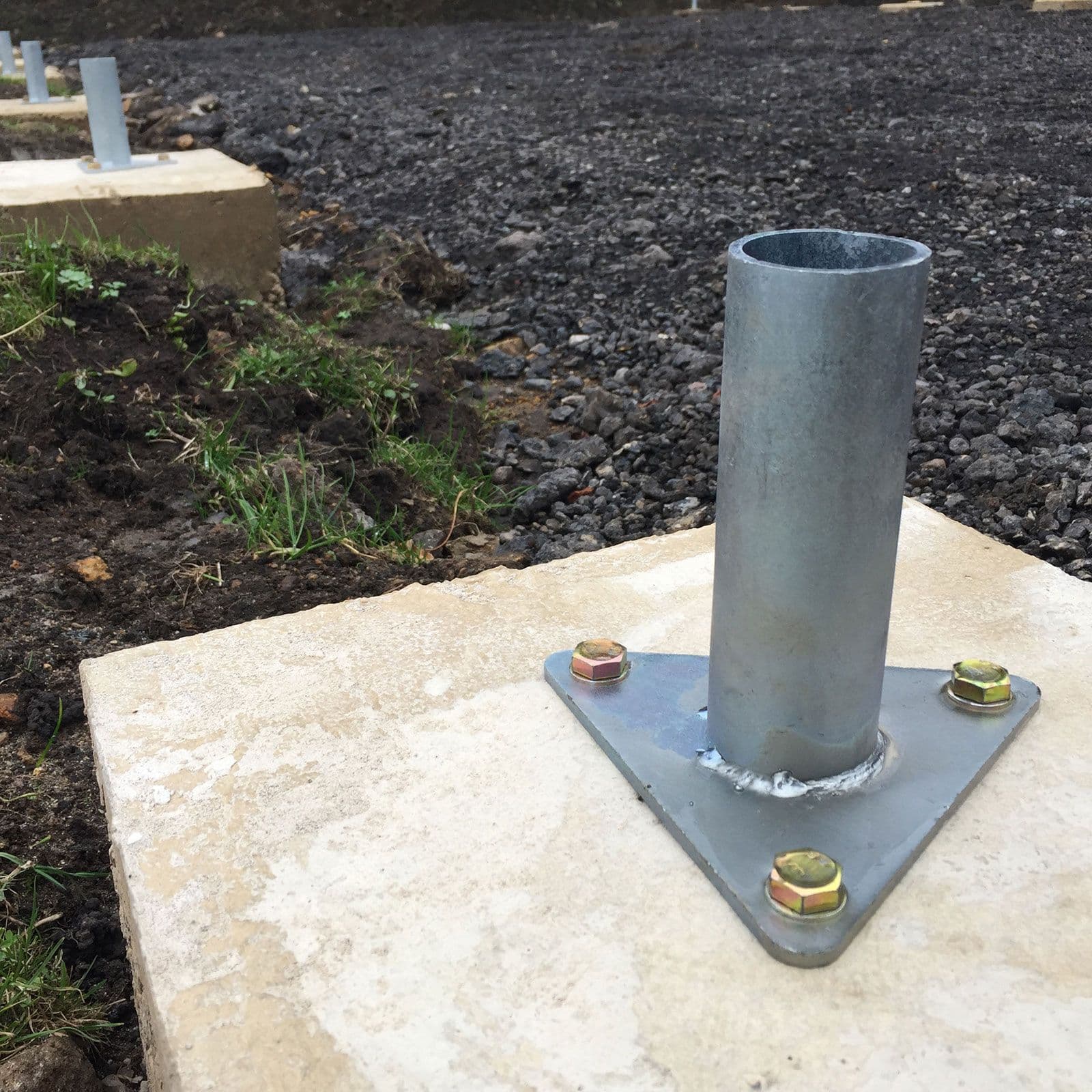

We supply standard polytunnel ground tubes for soil, when trenching the cover these can just be hammered into the ground, if you are fitting a base rail then they must be concreted in or if you are not exposed to the weather anchor plates can be used. these can be backfilled with earth or concreted. Base plates for fixing to timber or concrete are to be fixed to an existing concrete pad or timber base. Screw anchors are for our smaller polytunnels and can be used if the ground does not have a lot of large stones.  Polytunnel ground foundations for garden and commercial polytunnels  25mm, 35mm, 50.8mm, and 60.3mm.

Delivery

Delivery Lead Times

We are currently estimating that all Fruit Cages, Super Strength, and Garden Polytunnel orders will be despatched in 1-3 working days.

Polytunnel Accessories (including polytunnel covers) will be despatched in 1 -3 working days.

Commercial polytunnels will be despatched in approximately 3- 5 working days. Please ask when ordering

Please note: Commercial Polytunnels require a forklift or adequate help to offload by hand. Please contact us should you wish to discuss this.

Greenhouses

With effect for all new greenhouse orders placed from the 6th of February 2023, the following lead times can be quoted on your website, display sites, and sales literature.

  • Mill finish with Horti and toughened glass - 4-5 Weeks
  • Powder Coated Standards (Compact, Maxim, Streamline, Delta, Craftsman, High Eave, Strata, Vantage, Belmont) 8-10 Weeks for ALL colours
  • Powder Coated Specials (all other models - Titan, Lean To, Dwarf Walls, Edge, Zenith, Supreme, and Classique) 10-14 Weeks for ALL colours

Please contact us should you wish to discuss this.

For offshore Islands, we will deliver to any UK mainland address of your choice. See the delivery page for more information

Sorry, but we can no longer deliver to the EU. This includes Southern Ireland.

Please Note  If you are buying online and paying by ClearAccept or PayPal. You will be charged the commission that we are charged by them for the transaction if for any reason the customer has to cancel.

We supply and deliver polytunnels and greenhouses throughout the UK.



3 Customer Reviews

Polytunnel Foundation Tubes from £3.50

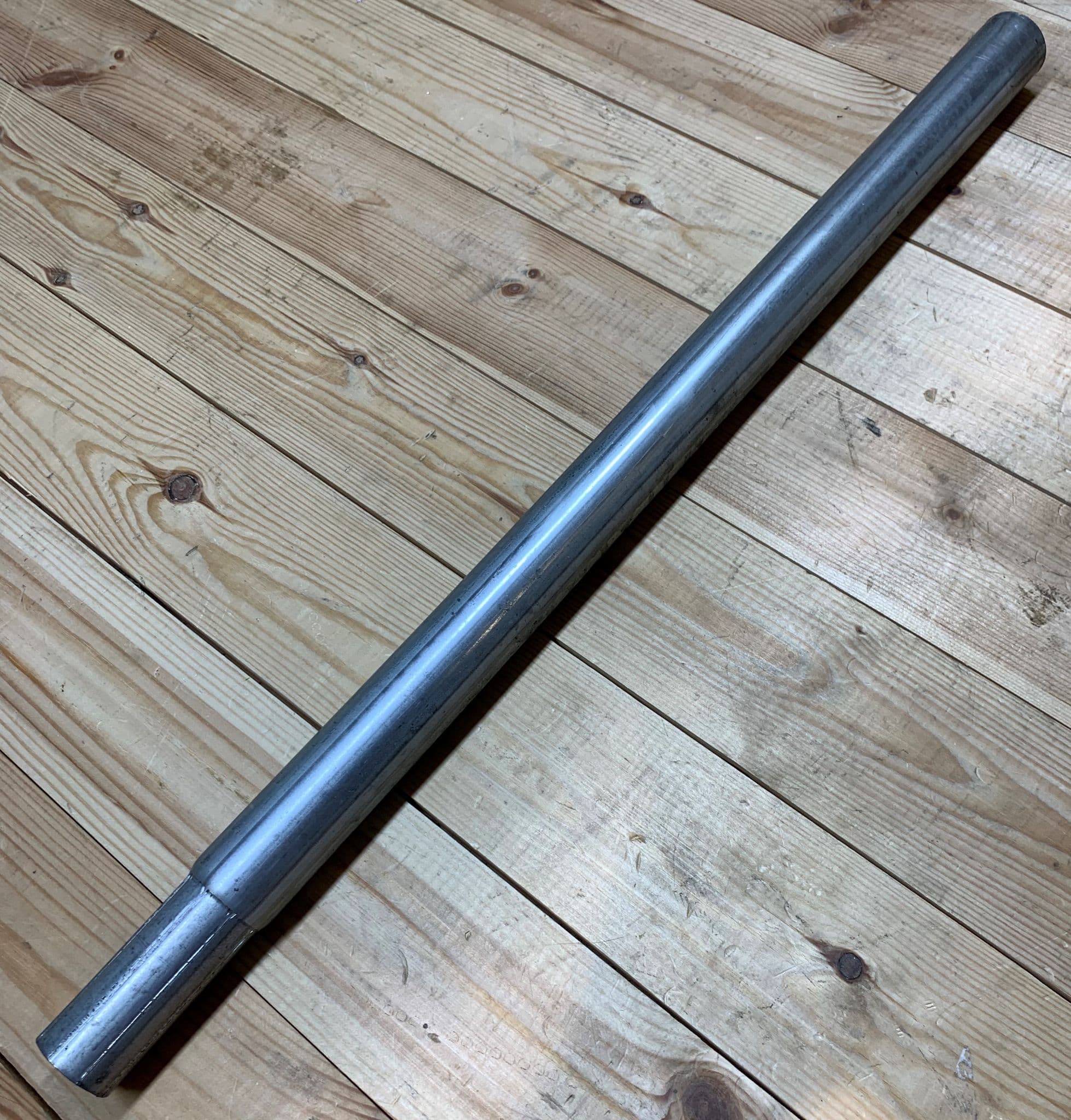

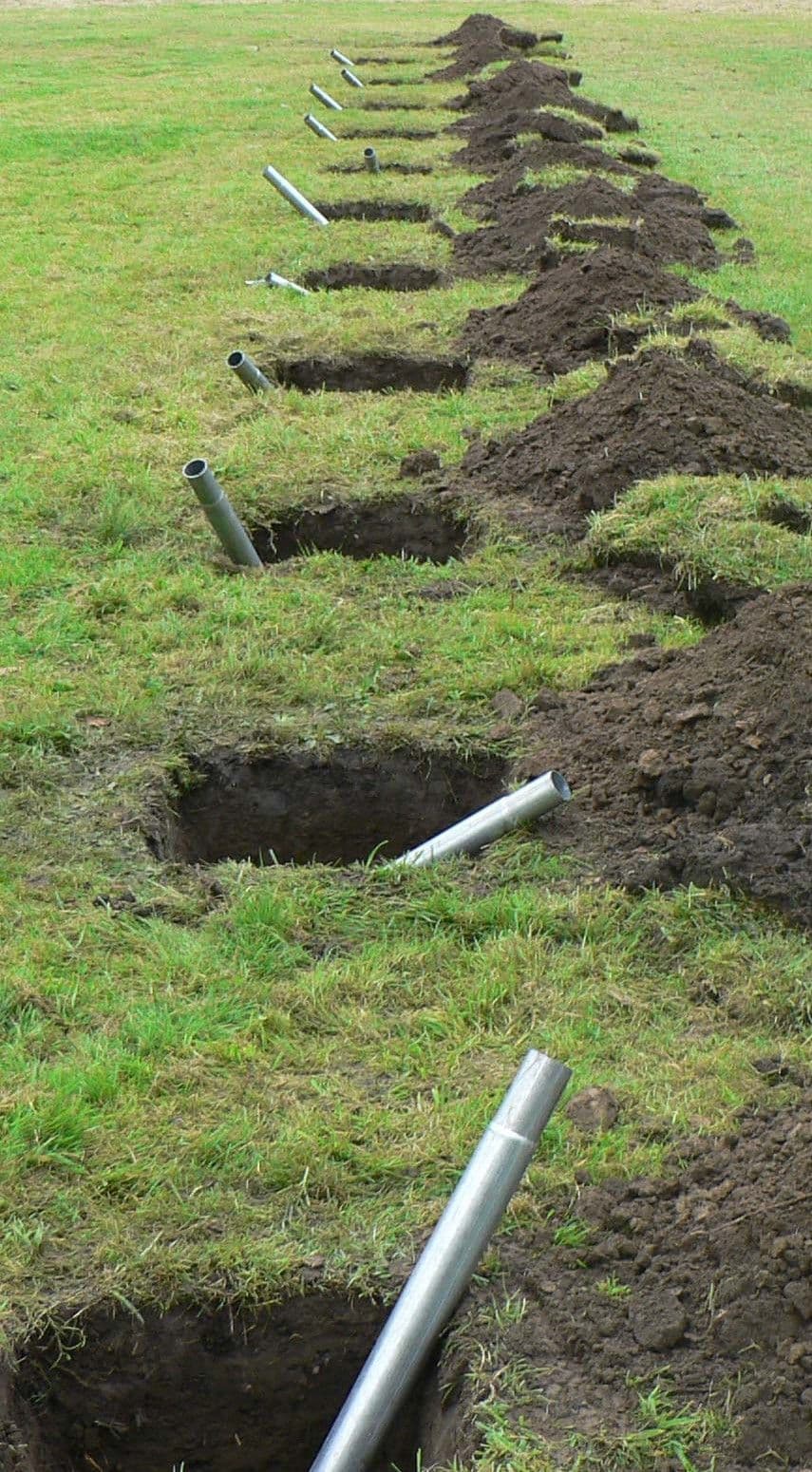

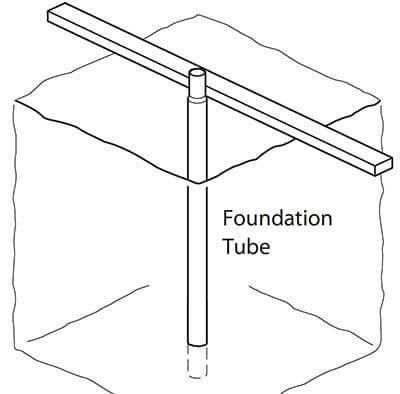

Our Foundation Tubes are designed specifically for use with our range of Polytunnels, featuring a swaged end for secure assembly. These tubes are suitable for quick and straightforward installation, particularly when constructing Polytunnels onto a soil base.

Installation Options

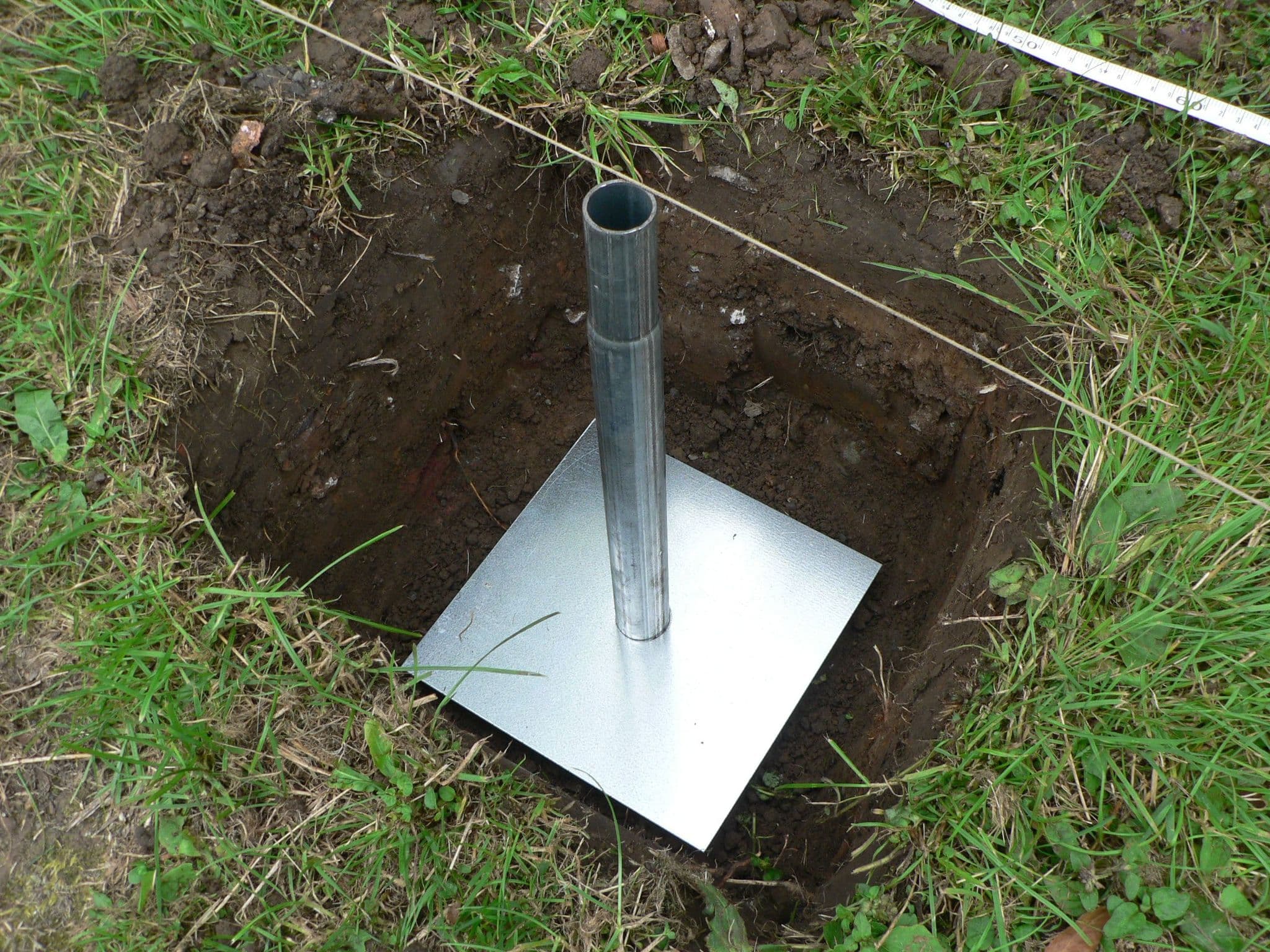

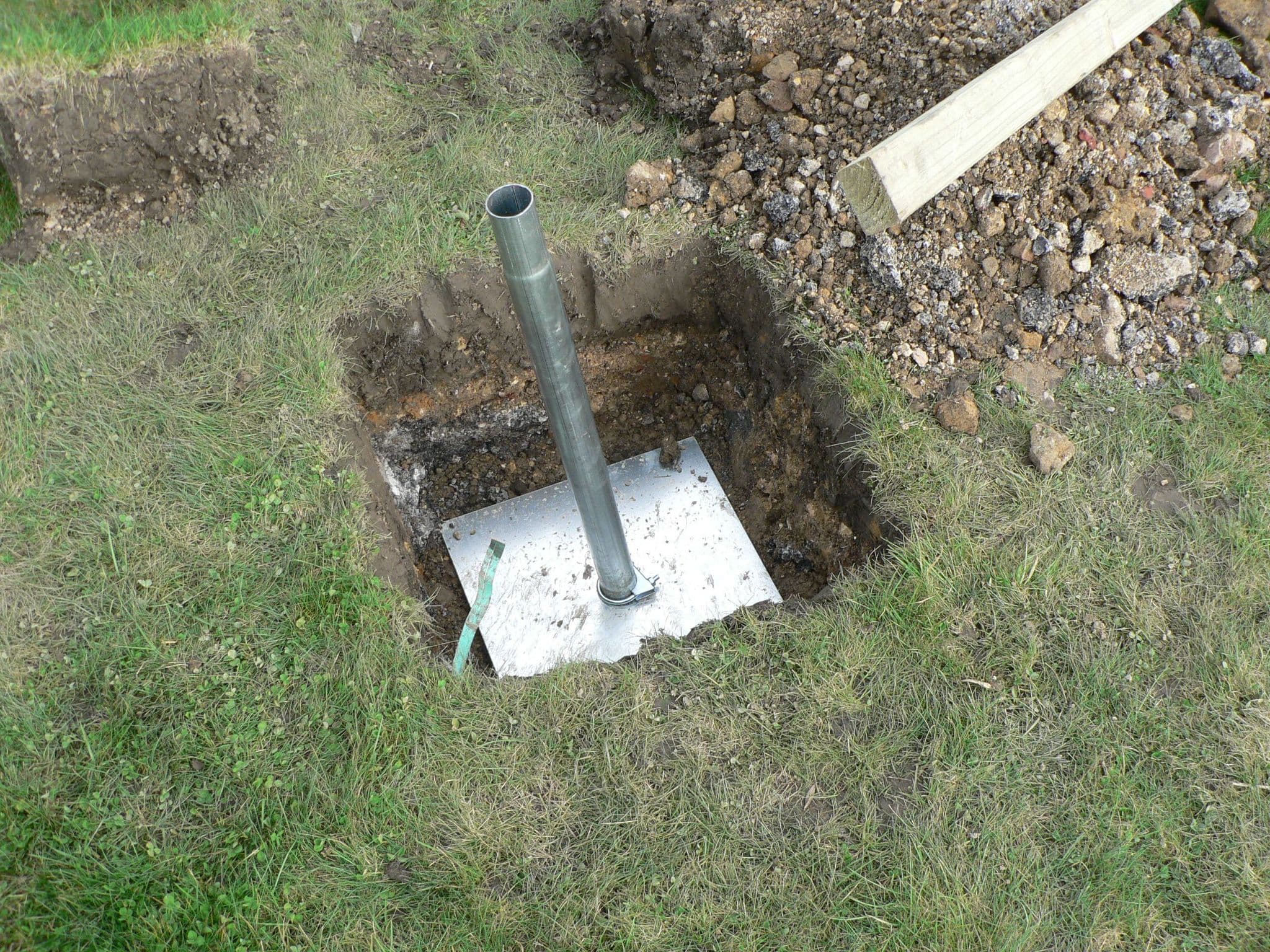

Foundation Tubes may be anchored directly into concrete for enhanced stability, or alternatively, they can be used in conjunction with Anchor Plates. Both methods provide reliable support for the structure, depending on site requirements and user preference.

Available Sizes

We offer Foundation Tubes in four different sizes to accommodate various specifications. Please refer to the table below for detailed information regarding each tube size.

Size

Tube Length

(Including Swage)

Length of Swage

Wall Thickness

25.4mm 50cm 51mm 1.2mm
35.0mm 61cm 70mm 1.5mm
50.8mm 75cm 83mm 1.5mm
60.3mm 75cm 90mm 1.5mm

The OD of the swaged end is as follows:

  • 25.4mm with a .22mm swaged end.
  • 35.0mm with a 31mm swaged end.
  • 50.8mm with a 46.8mm swaged end.
  • 60.3mm with a 56.3mm swaged end.

We provide various options for ground foundations or anchor plates, as well as base plates for concrete or timber, for both garden and commercial polytunnels. These options come in sizes of 25mm, 35mm, 50.8mm, and 60.3mm. For smaller tunnels, we also offer screw anchors in sizes of 25mm and 35mm. These options are compatible with most polytunnels, regardless of the manufacturer.

PLEASE NOTE: IF YOU ARE ORDERING THE ANCHOR PLATES, YOU MAY REQUIRE THE FOUNDATION TUBES TOO.
